Payment & Shipping Terms:
|Steel Frame Material:||50*50 Steel Tube||Structure:||KD Structure|
|Wooden Top Color:||White/Dark Walnut||Leg Color:||Dark Gray|
|Quality Period:||5 Years||Wooden Top Material:||Chipboard Material|
Module design MDF/MFC chipboard desk with mobile pedestal cabinet orange Partition

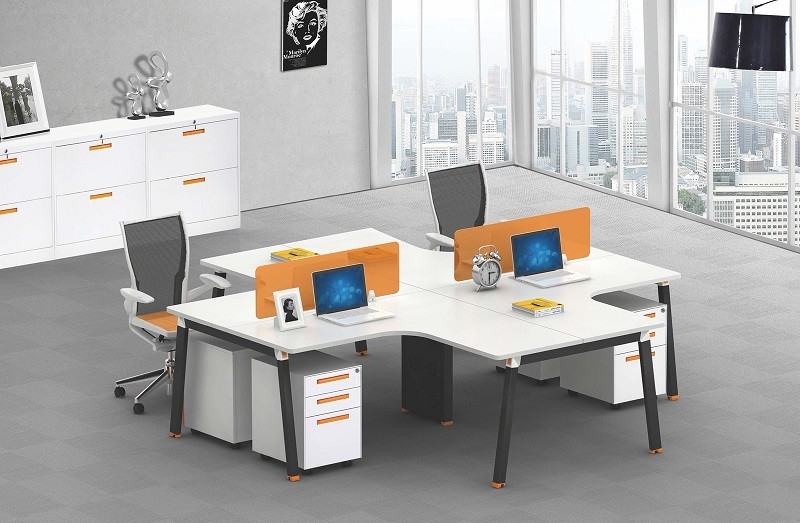

4 person office workstation product description:
Name:four staff use office desk office table Modern lectern MDF/MFC chipboard desk with mobile pedestal cabinet
The wooden top thickness:MDF 25mm(1 inch size thick top and side) ,High pressure PVC lamination touch edge.
Mobile Pedestal cabinet color: white black silver grey or your customized color
Desk top will matched wire box, the wire box material:Plastic or aluminum
Modesty panel:Wooden plate or Steel plate with fixed parts
Desk screen material:Glass or wooden plate with fabric
|structure||4 person office desk workstation|
|Position||Face to face|

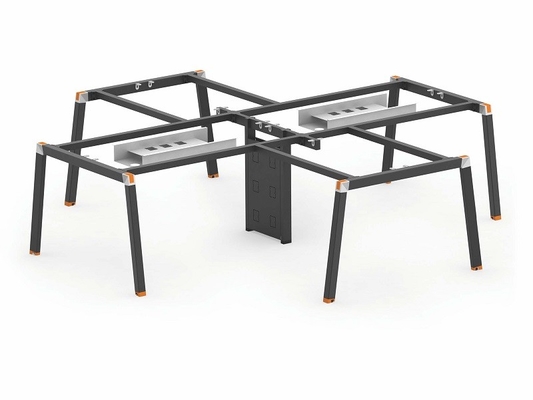

|Steel frame leg structure||50*50 steel tube ,1.5mm thickness|
|Steel frame leg material||Cold roll steel tube|
Or customized size
|Steel frame color||White black light gray|
|Top panel Thickness||25mm|
|Desk Top color||Black/white/teak/OAK|
|Desk top material||MCF/MDF faced melamine|
|Partition Material||Aluminum frame+ panel/ glass /fabric / steel board|
|Desktop Seal edge||PVC/ABS|
|Steel frame surface treatment||Powder coating|
Wooden top: 2PCS/CTNS
Steel frame: 1 pc/CTNS
|Seaport name||Qingdao seaport|
For office desk shape, Please reference the following picture:
Wooden top details:
1.The wooden top thickness 16mm 18mm 25mm 50mm available
2.The wooden top material:medium density fiberboard and melamine faced chipboard
3.The top thickness:3mm 5mm 9mm 12mm 15mm 18mm
5.Edge seal material:PVC ABS available
6.Please check the wooden top actual picture:
7.For the wooden top color, Please contact us our sales team, They will send the color plate to you.
Wooden top material advantage:
E1 E0 level MDF environmental protection ecological board
National maddatory standard
Flat surface not easily deformed
Insect control and corrosion treatment
International environmental standards high quality Eco-environmental wood board base material
Anti-scalding without distortion
Scratch resistant,wear resistant and durable
Water proof,non-fading ,easy to clear
For wooden top color, you can following options:
Mobile Pedestal cabinet specification:
Cabinet name: Mobile pedestal cabinet
Material: Cold roll steel plate
Runner: Three section guideway,fully open,Ball guideway
Function:Anti-tile device,One times can only open one drawer.
One drawer load:25KGS
Wheels number:4+1 w1heels
Structure:Non-knocked down structure, Whole unit
Wire management details:
Wire box position:Put in wooden top
Wire box: Plastic aluminium alloy
Wire box surface:oxidation,chrome,brass plated
Function:normal and multifunction wire box
Cable management details:
Cable box position:under the wooden top ,fixed by screw
Cable box material: plastic or steel plate made
Cable box surface: Powder coating
The office furniture manufacture process as following:
1. Cutting: According to the design-drawings, the steel sheets(open and flat) are cut into different sizes by the high-accurated machines, without errors or burrs.
2. Pressing: The CNC machine tools and other machine tools work with the big-scale mould together to reach the required standard and cooperate with the flow line production, which assure the production efficiency and quality
3. Bending: Skilled workers and advanced facilities make sure the clear lines and perfect appearance
4. Welding: Locate the work pieces into the corresponding mould, firmly weld with CO2 shielded welding or argon-arc welding and including the laser welding then conduct slag removing and polishing.To insure all the edge must be flat without burrs,we will need to ask the worker to grind the corner.
5. Powder Coating process: All the sheet material parts will go through 13 treatments of water cleaning, acid-washing, phosphating etc. The imported automatic spray facilities and top-quality powder promise the coating to be flat and smooth, non-toxic and no smell.
All the process will need to pre-check by the worker, and then the Professional inspector will check again, the next steop will checking by team leader.
6. Installation: To ensure the firmness of every screw, the installation workshop adopts pneumatic tools to conduct mass and flowline production
7. Assembly and packing: Strict and special testing before packing and storage to make sure the products are highly-qualified.
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products based on the proof-documents
2. If failure or damage due to incorrect operation, rough handling, or anything other does not follow our instruction,we will provide the new products but all charge will be collect by you.
1. Your inquiry related to our products or prices will be replied in 24hours
2. Well-trained and experienced staffs to answer your enquires in fluent English
3. Any customized furniture we can help you to design and integrate into product
4 QC & Inspection: High resolution photos would be forwarded to you during and after the production.
5. Our factory do make projects, According to your office layout drawing, our factory can design nice and comfortable office environment.
