Product Details:
Payment & Shipping Terms:
|
Steel Frame Material: | Pentagon Tube Steel Tube | Structure: | KD Structure |
---|---|---|---|
Wooden Top Color: | White/Dark Walnut | Steel Framne: | Black White Light Gray |
Quality Period: | 5 Years | Wooden Top Material: | Chipboard Material |
Module Design 4 Person Division Office Table Face To Face Steel Office Workstation
Name:4 person division Module office table face to face office workstation
Spare part: full steel frame +wooden top+screen+wire box+cable box

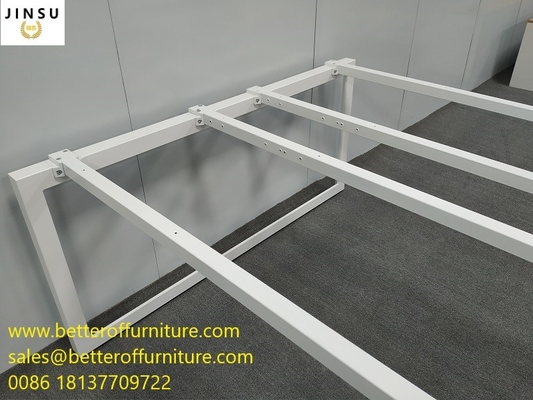

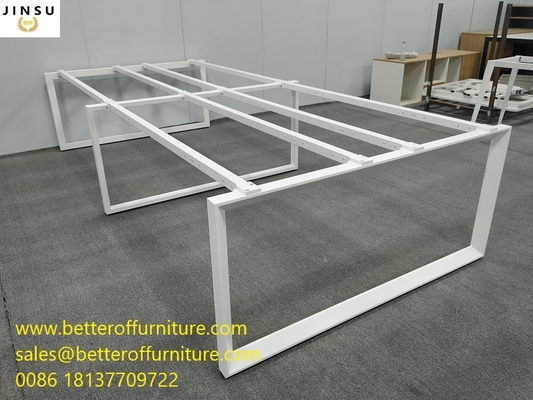

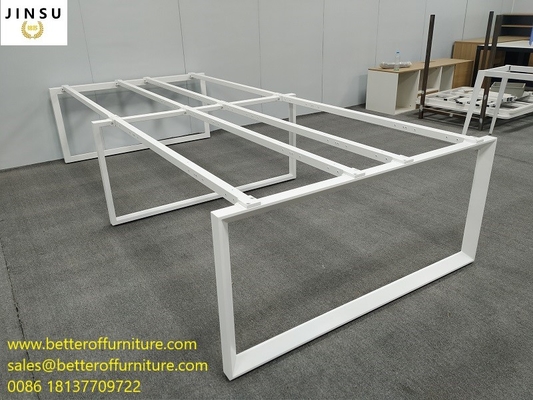

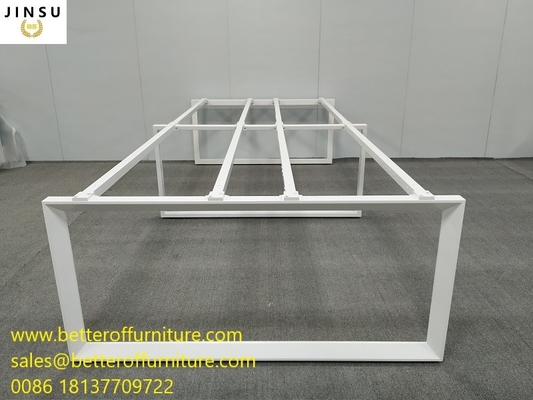

Steel frame structure:pentagon tube steel tube,1.5mm thickness
Desk Wooden top: 25mm thickness MDF+MFC ,PVC Cover
Desk Wooden top color: White or other color available
Desk Steel frame color:white or RAL color available
Wooden top thickness:25mm ,PVC cover
Steel frame shape: O shape and square shape available
Service: we can provide very helpful supports on layout analysis and drawing when ordered places
Delivery time:15 days after getting the order
PRODUCT DESCRIPTION:
Items NO. | BT-WJ-K05 |
Material | Metal and steel tube |
The office desk structure | Directly line,Y shape, L shape ,face to face available |
Steel tube structure | Pentagon tube 1.5mm thickness |
Steel frame treatment | Smooth or Matt or Sand treatment |
Wooden top Material |
MDF+MFC MDF:Medium Density Fiberboard MFC:melamine faced chipboard |
Wooden top Size |
L2400XW1200XH750mm L2800XW1400XH750mm L2400XW1400XH750mm L3600XW12000XH750mm L4800XW1400XH750mm Or customized size |
Spare part | Screen ,wire box,cable box,Snake shape tube |
Payment | T/T with 30% deposite before production,70% balance before delivery. |
Lead Time | 15-20 Days |
MOQ | 50 PCS |
Unit Volume(CBM) | Please contact with our sales team for more details |
1 SETS | |
Packaging details | 1.Knocked down structure 2.Outer exported standard carton 3.Inner box, using PEP foam 4.All of the production are inspected carefully by QC before delivery. |
Seaport name | Qingdao shanghai available |
For office desk shape, Please reference the following picture:
Wooden top details:
1.The wooden top thickness 16mm 18mm 25mm 50mm available
2.The wooden top material:medium density fiberboard and melamine faced chipboard
3.The top thickness:3mm 5mm 9mm 12mm 15mm 18mm
4.Package:2PCS/Carton
5.Edge seal material:PVC ABS available
6.Please check the wooden top actual picture:
7.For the wooden top color, Please contact us our sales team, They will send the color plate to you.
Wooden top material advantage:
E1 E0 level MDF environmental protection ecological board
Eco-friendly
National maddatory standard
High strength
Flat surface not easily deformed
Insect control and corrosion treatment
International environmental standards high quality Eco-environmental wood board base material
Anti-scalding without distortion
Scratch resistant,wear resistant and durable
Water proof,non-fading ,easy to clear
For wooden top color, you can following options:
Wire management details:
Wire box position:Put in wooden top
Wire box: Plastic aluminium alloy
Wire box surface:oxidation,chrome,brass plated
Function:normal and multifunction wire box
Cable management details:
Cable box position:under the wooden top ,fixed by screw
Cable box material: plastic or steel plate made
Cable box surface: Powder coating
The office furniture manufacture process as following:
1. Cutting: According to the design-drawings, the steel sheets(open and flat) are cut into different sizes by the high-accurated machines, without errors or burrs.
2. Pressing: The CNC machine tools and other machine tools work with the big-scale mould together to reach the required standard and cooperate with the flow line production, which assure the production efficiency and quality
3. Bending: Skilled workers and advanced facilities make sure the clear lines and perfect appearance
4. Welding: Locate the work pieces into the corresponding mould, firmly weld with CO2 shielded welding or argon-arc welding and including the laser welding then conduct slag removing and polishing.To insure all the edge must be flat without burrs,we will need to ask the worker to grind the corner.
5. Powder Coating process: All the sheet material parts will go through 13 treatments of water cleaning, acid-washing, phosphating etc. The imported automatic spray facilities and top-quality powder promise the coating to be flat and smooth, non-toxic and no smell.
All the process will need to pre-check by the worker, and then the Professional inspector will check again, the next steop will checking by team leader.
6. Installation: To ensure the firmness of every screw, the installation workshop adopts pneumatic tools to conduct mass and flowline production
7. Assembly and packing: Strict and special testing before packing and storage to make sure the products are highly-qualified.
Warranty term:
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products based on the proof-documents
2. If failure or damage due to incorrect operation, rough handling, or anything other does not follow our instruction,we will provide the new products but all charge will be collect by you.
Our Service:
1. Your inquiry related to our products or prices will be replied in 24hours
2. Well-trained and experienced staffs to answer your enquires in fluent English
3. Any customized furniture we can help you to design and integrate into product
4 QC & Inspection: High resolution photos would be forwarded to you during and after the production.
5. Our factory do make projects, According to your office layout drawing, our factory can design nice and comfortable office environment.
